HRD-BZGD-120 AUTOMATIC BAG TYPE PACKING MACHINE

APPLICATION: This machine is applicable to the opening, filling, and sealing of various flat bags/M bags/irregular-shaped bags, as well as various powder, liquid, solid, and granular products.

PRODUCT NO.: HRD-GZQD-120

PRODUCT NAME: HORIZENTAL BAG TYPE PACKING MACHINE

product details

Main features

1. This machine is an automatic pre-made bag packaging machine, suitable for users who require a wide variety of bag sizes, large packaging capacities, and small product batches.

2. It can not only meet the requirements for common three-side seal and four-side seal bags but also achieve the packaging of special bag types such as hanging-hole bags, stand-up pouches, and irregular-shaped bags.

It is suitable for packaging materials such as powders, granules, liquids, creams, and solids.

3. The machine is designed with a compact structure and small size. The bag-moving and bag-picking mechanisms are servo-controlled, ensuring high efficiency and reliability.

4. The whole machine adopts mainstream PLC control, a color touch screen, and servo motors, making it simple and convenient to operate.

parameters

Parameters

Items	Specifications	Remarks
Rated voltage	AC220V 50Hz
Air source	0.6~0.8MPa

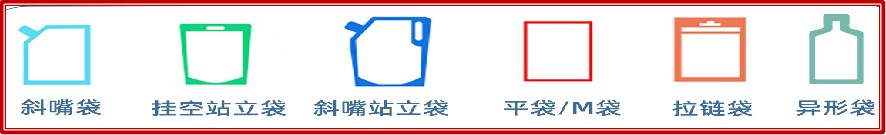

Suitable bag types	Flat bags / M-shaped bags / Hanging-hole bags	customizable
Bag width range	60~120mm	customizable
Bag length range	100~200mm	customizable
Packaging speed	25~40pcs/min	customizable
Feeding mechanism	Powder / Granules / Liquid / Paste / Solid
Overall dimensions	1200860760mm	customizable
Product weight	300KG

Configuration

Items	Brands	Place of Origin
Main control PLC	Delta / Panasonic / Siemens	Taiwan, China / Japan / Germany
monitor	Weinview / Panasonic / Siemens	Taiwan, China / Japan / Germany
Servo motor	Guomai / Panasonic / Delta	China / Japan / Taiwan
Relay / Circuit breaker	Chint / Omron / Schneider	China / Japan / France
Solenoid valve	AirTAC	Taiwan
Cylinder	AirTAC	Taiwan
Magnetic sensor	AirTAC	Taiwan
Bearing	NSK / NTN	Japan
Linear guide	HIWIN	Taiwan
Frame / Structural parts	Aluminum profiles / Anodized aluminum alloy / 304 stainless steel	China
Exterior decorative parts	SU304 / Acrylic / Anodized aluminum alloy	China

As a company focusing on technological innovation and product quality, we are committed to providing customers with safe, reliable and superior performance products. We will continue to make continuous efforts to actively develop and produce more high-quality products to meet customer needs, and provide customers with better services. So please do not hesitate to contact us immediately, we look forward to providing you with more help and support.
