AIR CUSHION BB CREAM FILLING & LABELING MACHINE FACTORY

MODEL NO.：HRD-GZQD-200ZX Equip.

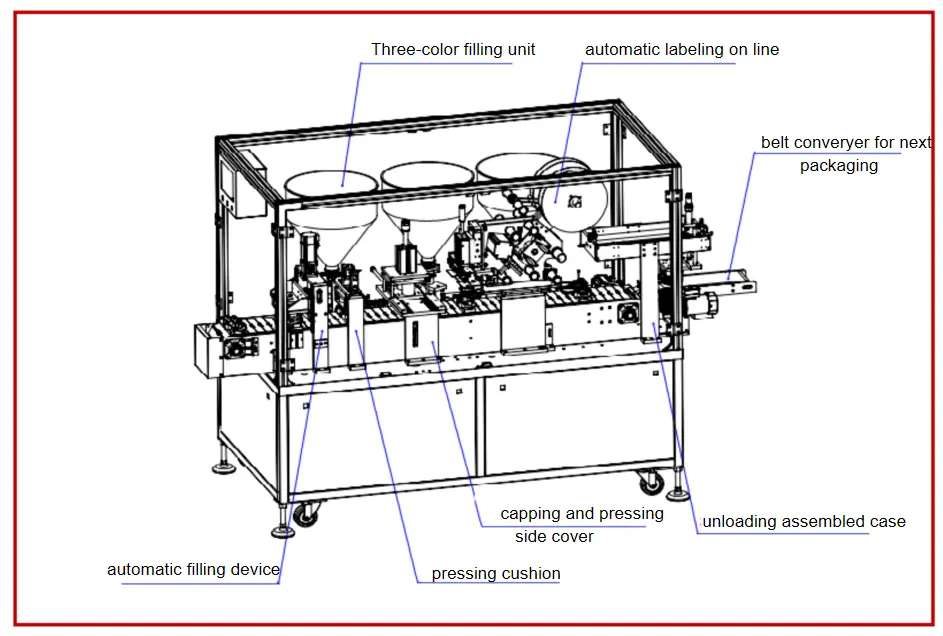

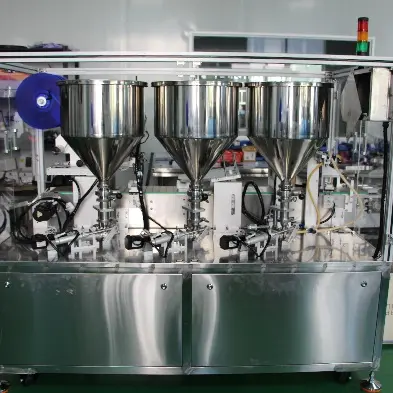

Name：three-color air cushion BB cream filling machine（linear chain slat conveyoring method,and labeling machine）

Mian features：

1. Applicable for filling single-color/double-color/three-color air cushion creams.

2. Servo double filling heads, ensuring accurate and efficient filling.

3. Automatic labeling function, with double labeling heads for precise and efficient labeling.

4. Automatic capping and pressing of the side cover. 5.The auxiliary cream pressing head guarantees sufficient immersion of the air cushion and uniform surface.

6. The linear running track allows for the expansion of various functions.

7. The filling pump adopts a precision ceramic pump, which is highly wear-resistant and accurate.

8. Suitable for extremely high-viscosity materials and high-density sponges.

product details

APPLICATION

During the research and development process of this equipment, iterative upgrades have been carried out. Based on the two-head air cushion BB cream filling machine (model No.: HRD-GZQD-200), the conveying method has been modified from circular rail belt conveyor to the linear chain slat conveyor. Structurally, it is simpler in design; in terms of material usage, it is more economical; in terms of equipment space, it is more compact; and in terms of price, it is cheaper. However, compared with the equipment with the circular rail belt conveyor (model No.: HRD-GZQD-200), this equipment is easy to loosen and requires irregular adjustment and maintenance.

parameters

HRD-GZQD-200ZX AIR CUSHION BB CREAM FILLING & LABELING MACHINE Parameters and Component of BOM

Equipment Parameters

Items	Specifications
Rated Voltage	AC220V 50Hz
Air pressure	0.6MPa
Feeding Method	Manual material insertion
Production Speed	1500-1800pcs/Hour
Filling Method	ceramic pump
Filling heads	2heads
Filling Accuracy	±0.2g
Filling Volume	1~25g(each head）
Air Cushion Box Thickness	10~80mm
Air Cushion Box Diameter	30-100mm
Filling Range	Applicable to various water-based agents, emulsions, creams

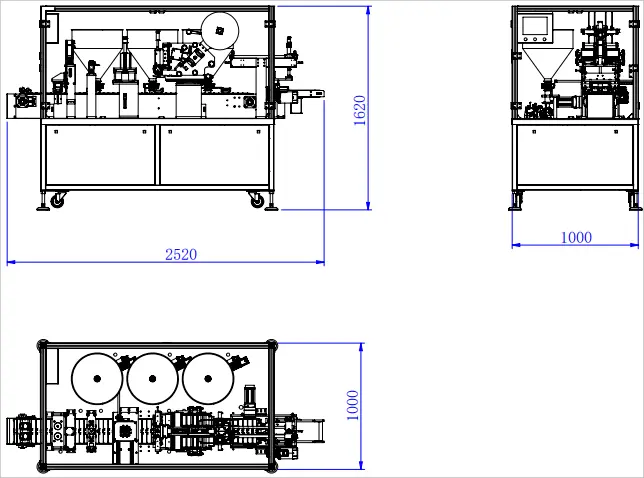

Overall Dimensions	225010001620mm
Equipment Weight	800KG

Main Configuration

Items	Brand	Place of origin
main controller PLC	Delta / Panasonic / Siemens	Taiwan/ Japan / Germany
monitor	desmetic / Panasonic / Siemens	China/ Japan / Germany
servo motors	desmetic / Panasonic / Delta	China/Japan/Taiwan
Relay/circuit Breaker	CHINT / Omron / Schneider Electric	China/Japan/Franch
Circular Guide Rail	HSD	china
Plunger Pump Cylinder	SMC	Japan
solenoid valve	AirTAC	Taiwan
Cyclinder	AirTAC	Taiwan
Magnetic Sensor	AirTAC	Taiwan
bearing	NSK/NTN	Japan
linear Guiade Rail	HIWIN	Taiwan
Frame/Structural Component	Aluminum profiles / Anodized aluminum alloy / 304 stainless steel	China
ExteriorDecoration Component	SU304 / Acrylic / Anodized aluminum alloy	China
