HRD550LQ CARTONING AND CASE PACKING PRODUCTION LINE
Features
◆The unmanned automatic packaging production line integrates product cartoning, carton opening and bottom sealing machine,automatic grapping case packing, “——“-shaped cover folding and case sealing .
◆the parts that contact the product are made of SUS304 stainless steel.
◆The driving and friction parts strictly follow the standard ,with less wear and less replacement of parts at later periods.
◆The packaging production line equipment has such advantages as manpower saving ,neat ,consistant and stable packaging appearance.The cartoning machine completes box opening boxing ,flap folding ,page folding ,glue spraying,glue sticking,code printing,labeling ,and then case unpacking, bottom sealing,palletizing and case packing are carried out, and finally the cartions enter the cover folding “I“-shaped case sealing machine.
◆The equipment can be used singly or connected with various kinds of machinery and equipment such as the material sorting machine,manipulator,three-dimensional packaging machine,pillow packaging machine,vertical bag packaging machine,pillow packaging machine,automatic filling machine,labeling machine and code printing machine at its front and rear ends for linked production

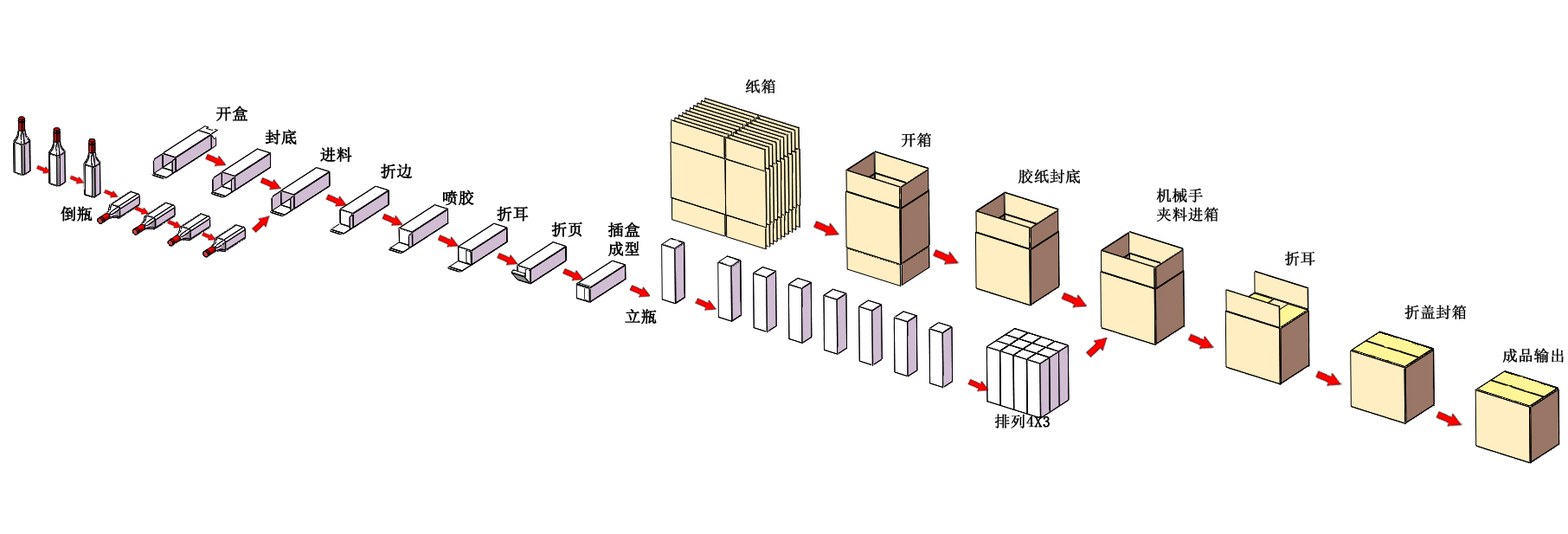

Process Diagram
parameters
Model |
Cartoning machine |
Packing machine |
Power supply |
AC220V 50HZ-60HZ |
AC220V 50HZ-60HZ |
Total power |
1.5KW |
2.5KW |
Production speed |
5-40 boxes/min |
1-8 cases per minute |
Air oonsumplion |
15-80L/min |
30-1B⁰Limin |
Use air source |
Pressure 0.5-0.7Mpa |
Pressure 0.5-0.7Mpa |
Paper requrements |
250-400g grey card |
Double corrugated paper |
Sutable for carton size |
L140-300 W60-175 H40-110 |
L300-600 W200-500 H200-500 |
Equipment dimensions |
2685×1560×1672mm |
2670×1900×2230mm |
Machine weight |
About 1320kg |
About 1260kg |
